Connecting Rod: Fitment, Bend, Twist and Rod Bolts

A connecting rod is a matched assembly, not a single part. It has to align a piston pin with a crankshaft journal while carrying the highest alternating load in the engine, and it has to do that at the same weight as the other five rods in the set. Get any of those three wrong and the engine runs — badly — until it does not. This guide covers the dimensions that decide fitment, how bend and twist are actually checked, why rod bolts are single use, and the assembly steps that prevent a repeat failure. What the rod has to do Each firing event pushes the piston down, and that force passes through the rod into the crankshaft. The big end bearing sees a load that reverses direction twice per revolution, which is why it fails before most other bearings when oil supply or clearance is marginal. WP6 connecting rod – big end bore is measured with the cap torqued. The rod also has to keep the piston square in the bore. A rod that is bent or twisted pulls the piston against one side of the liner, and the result looks like a piston or ring problem rather...

Learn More

Genset Engine Parts: What Wears First in Continuous Duty

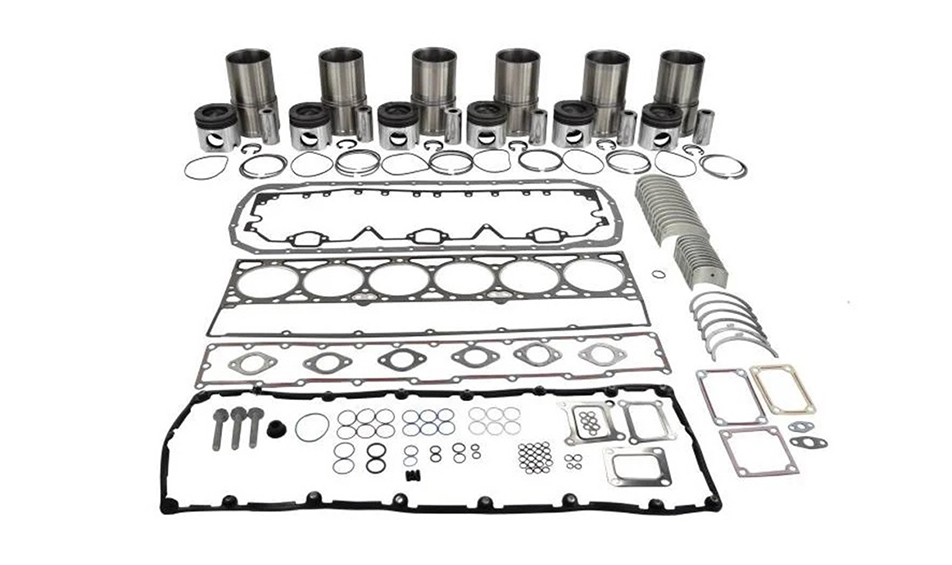

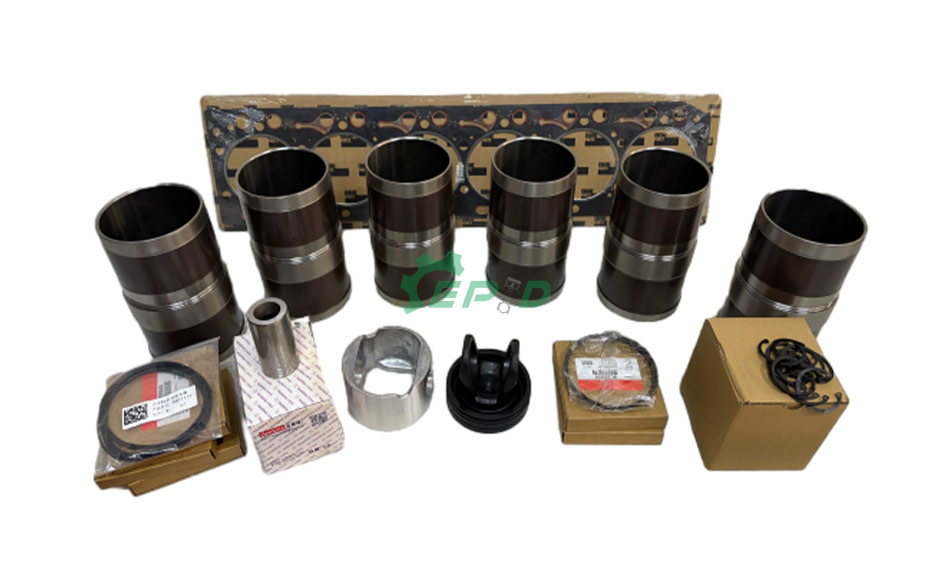

A generator set engine does not wear the way a truck engine wears. It rarely sees a cold start, it rarely sees full throttle, and it almost never sees a long coast. What it does see is thousands of hours at a constant load, and that pattern produces a different failure order than road service. This guide covers what fails first in continuous-duty diesel generators, how to plan around engine hours rather than kilometres, and what a spares stock should actually contain. Why genset wear is different Three things separate a genset engine from a vehicle engine: WP9 overhaul kit – the wearing parts for a genset rebuild in one box. Constant load — the engine sits at 50-80% load for hours. Cylinder pressure and temperature stay high, so rings and liners wear on a steady curve rather than in stop-start cycles. Hour-based life — 10,000 hours at 1,500 rpm is 900 million revolutions, most of them loaded. A truck covering the same hours covers far fewer loaded revolutions. Poor part-load behaviour — standby sets that run lightly for long periods glaze bores and load the exhaust system with unburnt fuel, which is worse for the engine than honest full...

Learn More

Cylinder Block: Cracks, Deck Flatness and Line Boring

A cylinder block is the reference for every dimension in the engine. When it is distorted, no amount of careful assembly will produce an engine that seals, because the head gasket, the bearings and the liners all depend on the block being correct. This guide covers the four conditions that decide whether a block can be repaired, how to measure each one, and the point at which replacement is the cheaper answer. The four conditions that matter Cracks 鈥?in the water jacket, the deck, the main saddles or at bolt holes. Deck flatness 鈥?the surface the head gasket seals against. Main bore alignment 鈥?the straight line the crankshaft must rotate in. Liner seat condition 鈥?where the liner flange sits and the O-rings seal. A block that passes all four can usually be rebuilt. A block that fails the first or third is usually scrap, because both repairs cost more than a replacement casting on most industrial engines. WD615 cylinder block – deck flatness is measured along the length and both diagonals. Finding cracks Cracks are found by test, not by looking. Three methods cover the usual locations: Pressure test 鈥?plug the water jacket and pressurise. Best for finding leaks into...

Learn More

Camshaft and Lifter Wear: Diagnosis and Replacement

Camshaft wear is slow, quiet and easy to misdiagnose, because a worn lobe does not produce an obvious failure 鈥?it produces a gradual loss of power, a misfire that moves between cylinders, and a tick that comes and goes. By the time the lobe is visibly worn, the lifters are usually scrap as well, and the pair has to be replaced together. This guide covers what wears, how to measure it, and the break-in procedure that decides whether a new camshaft survives its first hour. What wears on a camshaft Lobe nose and flanks 鈥?the highest load point in the valve train, where the lifter contact pressure peaks. Journals 鈥?wear from oil starvation or a blocked gallery; scored journals are often the first sign of a bigger problem. Injection pump drive gear 鈥?tooth wear produces timing scatter that looks like an injection fault. Thrust face 鈥?end float grows and the shaft walks, which then damages the gear. On most diesel engines the camshaft runs directly in the block or in bearings, and the lifters are either flat tappets or rollers. Roller lifters tolerate far more load, flat tappets rely on oil film and a correct mating surface. WD615 camshaft –...

Learn More

Crankshaft Inspection: Journals, Fillets and Regrinding

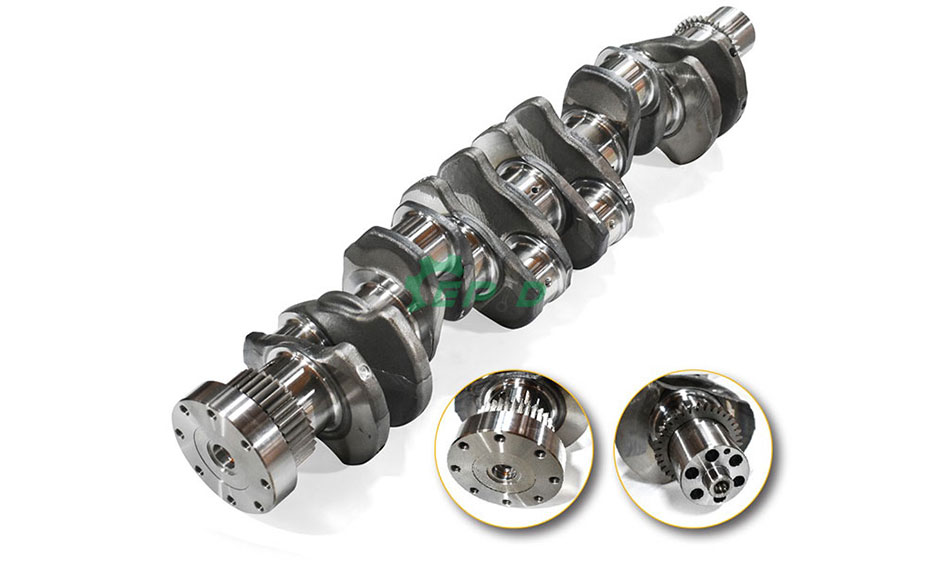

A crankshaft is the most expensive rotating part in a diesel engine, and it is also the part most often condemned on a single measurement. A journal can read the correct diameter and still be unusable, because diameter says nothing about ovality, taper or the fillet radius where every fatigue failure starts. This guide covers what to measure, where to measure it, and the point at which regrinding stops being an option. What actually fails on a crankshaft Three failure modes account for nearly all crankshaft scrap: WP13 crankshaft – ovality at the journals decides bearing life. Bearing failure caused by oil starvation or wrong clearance 鈥?the journal is scored, and the shaft is blamed even though the oil system caused it. Fatigue cracking at the fillet 鈥?starts where the journal meets the web, usually after a regrind that did not restore the radius. Torsional damage 鈥?from a perished damper or a seized load, producing cracks across the web. Only the second and third are crankshaft faults in the true sense. The first is an oil system fault that leaves a damaged shaft behind. Measuring journals correctly Diameter alone is not enough. For each journal, record four figures: Diameter at...

Learn More

Cylinder Head Rebuild: Valves, Guides and Seats

A cylinder head is the most expensive single casting in the engine, and the decision to rebuild rather than replace it should be based on measurement, not on how the head looks. Cracks, worn guides and sunken seats are all invisible from the outside, and all three decide whether a rebuilt head will last. This guide covers the checks that determine whether a head is rebuildable, how guides and seats are sized, and the assembly steps that separate a head that seals from one that burns oil. Rebuild or replace: the decision points Four conditions decide it, and all four are testable before any money is spent: WD615 cylinder head – check the casting revision before rebuilding. Cracks — in the valve bridge, around injector bores or from a coolant passage. Pressure testing finds what the eye cannot. Deck and face flatness — measured with a straight edge and feeler gauge along the length and both diagonals. Valve seat depth — seats that have been cut repeatedly sink into the casting until there is no material left to cut. Casting revision — a head from the wrong revision will fit and change combustion, so it is replaced rather than rebuilt....

Learn More
